639.00 lei
Key Features
250mm Carbon-Glass Fiber Honeycomb Cone Subwoofer |
Super Linear Spider |
Smooth Linear Surround |
Heat transfer structure |
Shallow Mount |
Speaker Features
Speaker Type | Subwoofer |
Peak Input Power | 1000W |
Rated Input Power | 250W |
Speaker Size | 250mm |
Speaker Cone Design | Carbon-Glass Fiber Honeycomb Cone |
Magnet Type | Ferrit |
Terminals | Silver-plated Push Type |
Heat Transfer Motor Circuit | Yes |
Magnet Cover | Aluminum Die-Cast Basket |
Gasket Installation | two-sided |
Installation Capabillity | Sealed/ Ported |
Speaker/woofer Specifications
Peak Input Power | 1000W |
Maximum Input Power | 500W |
Rated Input Power | 250W |
Woofer Cone material | Carbon-Glass Fiber Honeycomb Cone |
Speaker Basket | Aluminum Die-Cast |
Speaker Surround | Rubber |
Spider Type | Super Linear Spider |
Sensitivity | 90dB/W/m |
Frequency Response | 35Hz ~ 800Hz |
Speaker Impedance | 4Ω |

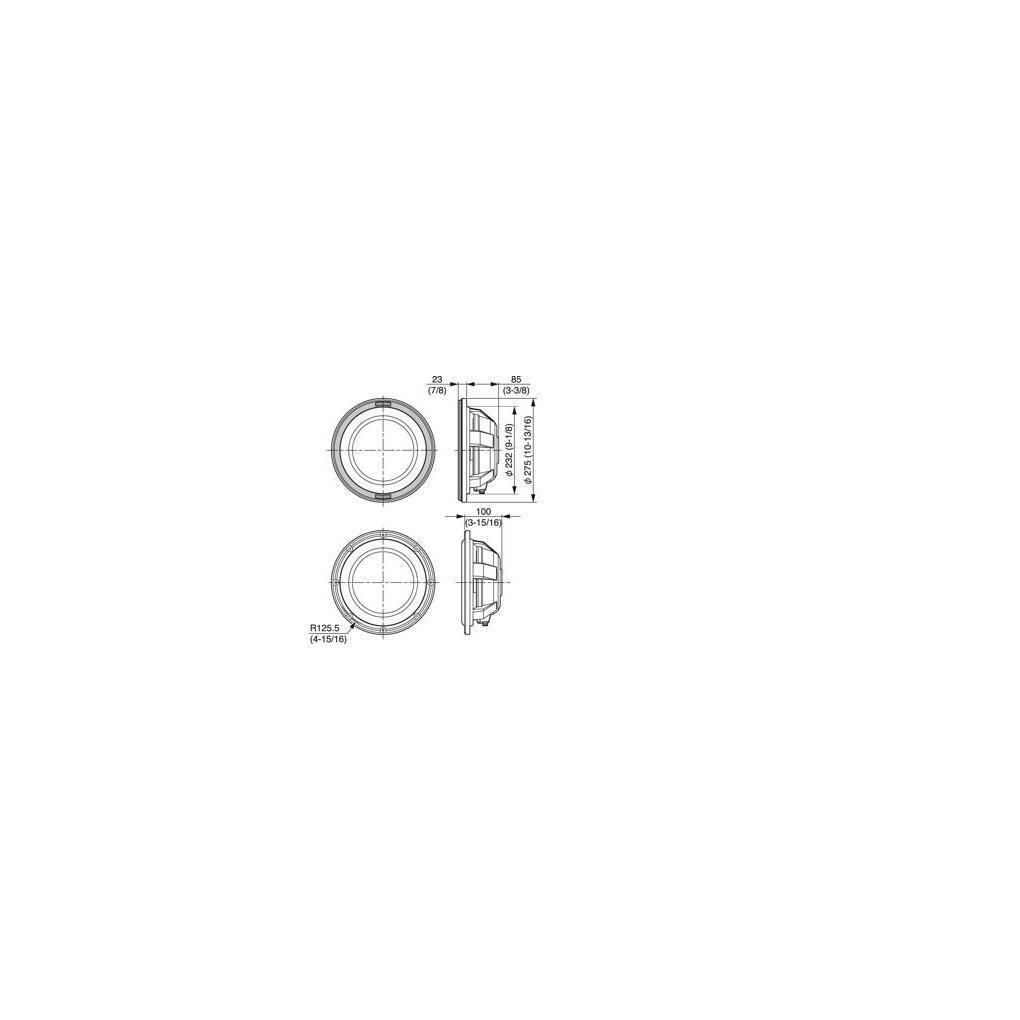

Dimensions (W x H x D) | 275 x 275 x 108mm |
Mounting Depth | 85mm |
Mouting Hole Diameter Ø | 232mm |
Speaker Weight | 4700gr |
Gross Weight | 5600gr |
Weight of Magnet | 1080gr |
Subwoofer Parameters
Nominal impedance (Z) | 4Ω |
DC resistance (Re) | 3.0Ω |
Resonant frequency (FSO) | 38.6Hz |
Mechanical Q factor (QMS) | 5.279 |
Electrical Q factor (QES) | 0.836 |
Total Q factor (QTS) | 0.722 |
Voice coil inductance (LBM) | 2.1mH |
Voice coil diameter (d) | 50mm |
Force factor (BL) | 10.7T/m |
Peak excursion Xmax | 7.5mm |
Moving mass (MMS) | 127gr. |
Volume accoustic compliance (VAS) | 21.05liter |
Piston Area (SD) | 0.034m² |
Displacement | 1110cc |
Sealed box volume | 17liter |
Sealed Box Dimensions (trapezium shape) | 718 x 324 x 103 x 160mm ( 21mm thick MDF)(WxHxD1xD2) |
Vented box volume | 17liter |
Vented Box Dimensions (trapezium shape) | 718 x 324 x 103 x 160mm ( 21mm thick MDF)(WxHxD1xD2) |
Vented box port diameter/length | Ø 76mm / 280mm |
Accessories
Screws (Parker-type) | Ø 5 x 30mm, 8 pieces |
Badge | 2 pieces |
Gasket | 1 piece(s) |
Cushion | 1 piece(s) |
